Fuse box Peugeot 206

Fuse box diagram

Browse



Locate fuses and relays

Ads Ads by Google

Peugeot 206 Fuse Box Layout Fuses Pump System Electric Installation

Search …

Categories

Fuses and relay Peugeot 206

Alfa Romeo Audi BMW Chevrolet

Flash DSC 1 List of Flash di erential scanning calorimetry articles. it now! METTLER TOLEDO

Chrysler Dodge Fiat Ford Honda Hyundai

For the Peugeot 206, Peugeot 206 sw 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007,

Jeep

2008, 2009 model year. Kia Fuse box located. Fuse box in engine compartment.

Land Rover Mazda Mercedes Mercury Nissan Opel/Vauxhall Peugeot Range Rover Renault Toyota Volkswagen

http://fusesdiagram.com/peugeot/fuses-and-relay-peugeot-206.html

1/11

19/04/2018

Fuse box Peugeot 206

Recent Posts Fuses and relay Jeep Wrangler 1986-1995 Fuses and relay Mercedes W168 Fuses and relay Mercedes W210 Fuses and relay Mercedes W202 Fuses and relay Mercedes W201 Fuses and relay Opel/Vauxhall Meriva B Fuses and relay Opel/Vauxhall Meriva A Fuses and relay Opel/Vauxhall Frontera B Fuses and relay Toyota Land Cruiser Prado 2002-2009 Fuses and relay Toyota Corolla 2007-2013 fuse box diagram type 1.

fuse box diagram type 2.

http://fusesdiagram.com/peugeot/fuses-and-relay-peugeot-206.html

2/11

19/04/2018

Fuse box Peugeot 206

Ads by Google

3

A Air Conditioning

A C Repair

A Electric Motor

legend.

(10A) Engine coolant blower motor relay, fuel/water separator sensor, fuel filter warning lamp F1

switch, glow plug control module, glow plug timer relay, mass airflow(MAF) sensor, power steering pump, reverse gear position switch, secondary air injection (AIR) pump, vehicle speed sensor (VSS)

F2

(15A) Fuel pump(FP),evaporative emission (EVAP) canister purge valve

F3

(10A) ABS control module, brake pedal position (BPP)switch

F4

(10A) Engine control module(ECM), engine coolant heater relay, transmission control module (TCM)

F5

(10A) Engine control module(ECM)

F6

(15A) Fog lamps

F7

(20A) Head lamp washer pump

F8

(20A) Engine coolant blower motor relay 1/2, engine control module(ECM), exhaust gas recirculation(EGR) solenoid, fuel pressure regulator control solenoid

F9

(15A) Headlamp low beam, left

F10

(15A) Headlamp low beam, right

F11

(10A) Head lamp high beam, left

F12

(15A) Head lamp high beam, right

F13

(15A) Horn

F14

(10A) Windscreen washer pump, rear screen washer pump

F15

(30A) Engine management

F16

(30A) Secondary air injection (AIR) pump

F17

(30A) Windscreen wiper motor

F18

(40A) AC/heater blower control module, AC/heater function control , heater/AC blower motor, in-car temperature sensor

http://fusesdiagram.com/peugeot/fuses-and-relay-peugeot-206.html

3/11

19/04/2018

Fuse box Peugeot 206

fuse box diagram type 3.

BATERIA SELADA 12V 7AH…

CONVERSOR PARA MOTOR…

MOTOR PARA AVIÁRIO…

R$53.90

R$559.99

R$427.95

Comprar

Comprar

Comprar

R1

Fog lamps relay

R2

Secondary air injection (AIR) pump relay

R3

Engine running circuits relay

R4

Horn relay

F1

(70A) Multifunction control module

F2

(40A) Engine coolant blower motor relay 1, engine coolant blowermotorrelay2

F3

(70A) Engine coolant heater-HDi

F4

–

F5

(20A/30A) Front fog lamps, horn, side/tail lamps

F6

(5A/10A/20A) Air conditioning (AC), day time running lamps, heated front seats

http://fusesdiagram.com/peugeot/fuses-and-relay-peugeot-206.html

4/11

19/04/2018 F7

Fuse box Peugeot 206 (5A/20A) Engine coolant blower motor (without AC), engine coolant blower motor relay 1 – some models (with AC)

F8

(70A) Fuse box/relay plate-fascia 1

F9

(50A) Multifunction control module

F10

(40A) Light switch

F11

(60A) Fuse box/relay plate- fascia 1 – some models

F12

(50A) ignition switch

F13

(40A) ignition switch

F14

(5A/30A) Alarm system, data link connector (DLC), day time running lamps, head lamp washers

F15

–

F16

(30A) Anti-lock brake system (ABS)

F17

(30A) Anti-lock brake system (ABS)

F18

(20A) Headlamp washers-some models

F19

–

F20

(15A) Fuel heater-HDi some models

F21

(5A) AC control module, AC/heater function control , engine coolant blower motor control module-HFY/HFZ/KFX/NFZ

F22

(10A/30A) Engine management-LPG, rear electric windows-some models

F23

(5A) Anti-lock brake system (ABS)

F24

(5A) Engine management, glow plug timer relay

F25

(10A) Fuel pump, inertia fuel shut-off (IFS) switch

F26

(10A/30A) Engine management, fuel pump

F27

(5A/10A/20A) Engine management-HDi, automatic transmission(AT) – some models

F28

(5A) Throttle body heater

F29

(20A/30A) Engine coolant blower motor-some models, secondary air injection (AIR) pump



relay

http://fusesdiagram.com/peugeot/fuses-and-relay-peugeot-206.html

5/11

19/04/2018

Fuse box Peugeot 206

F30

(10A) Front fog lamp, right, front fog lamps 'on ‘warning lamp

F31

(10A) Front fog lamp, left

(10A) Automatic transmission (AT), datalink connector (DLC), engine coolant heater- HDi, F32

engine coolant level gauge, injection pump assembly, reversing lamp/s, vehicle speed sensor(VSS)

F33

(10A) Automatic transmission (AT)

F34

(5A/15A) Engine management

Maxi fuse Peugeot 206. Fuse location.

F1

(20A) Engine coolant blower motor relay

F2

(70A) ABS control module

F3

(30A) ABS control module

F4

(70A) Fuse box/relay plate, fascia (F9-F12/F16), multifunction control module 1

F5

(70A) Fuse box/relay plate, fascia(F1/F4/F5/F7/F14/F15/F23)

F6

(30A) Power steering pump

F7

(30A) ignition switch

F8

(30A) Audio unit output amplifier

http://fusesdiagram.com/peugeot/fuses-and-relay-peugeot-206.html

6/11

19/04/2018

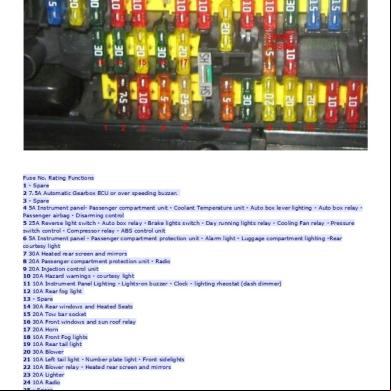

Fuse box Peugeot 206 Fuse box in enger compartment Peugeot 206.

Unscrew the catch a quarter turn using a coin then remove the cover to gain access to the fuses.

fuse box diagram type 1.

F1

(15A) Alarm system control module, alarm system horn, steering column function control module, seat heater relay

(10A/20A) Audio unit, convertible top control module, digital multifunction display, luggage F4

compartment lamp, navigation system control module, steering column function control module, trailer control module, telematics control module

F5

F6

F7

(10A/15A) Data link connector (DLC), fuel additive control module, transmission control module(TCM)

(10A) Engine coolant 'low' warning lamp switch, transmission control module(TCM), audio unit, steering position sensor, data link connector(DLC)

(15A) Alarm system control module, audio unit, cruise control brake pedal switch, telematics control module

F9

(30A) Electric window relay, alarm system control module

F10

(40A) Electric/heated door mirrors, heated rear window

http://fusesdiagram.com/peugeot/fuses-and-relay-peugeot-206.html

7/11

19/04/2018

F11

Fuse box Peugeot 206

(15A) Rear screen wiper motor

(30A) Electric window dual switch, driver's door, electric window console switch assembly, door F12

mirror adjustment switch, convertible top control module, convertible top actuation switch, sunroof switch

(10A) Alarm system boot lid/tail gate inhibitor switch, ambient light sensor, boot lid/tail gate F14

switch, combination switch, supplementary restraint system (SRS) control module, steering column function control module, multifunction control module 2, wind screen wiper rain sensor

F15

(15A) AC control module, audio unit, digital multifunction display, navigation system control module, instrument

F16

(30A) Central locking

F20

(10A) Brake pedal position(BPP)switch, stop lamp, right

F21

(15A) Brake pedal position(BPP)switch, stop lamp, left

F22

(30A) Auxiliary power socket, cigarette lighter, interior lamps, glove box lamp, reading lamp

F23

Bridge- Fuse box/relay plate, fascia (F4/F5)

fuse box diagram type 2.

F1

(50A) Anti-lock brake system (ABS)

F2

(5A) Instrument

F3

–

F4

(5A) Multifunction control module

F5

–

http://fusesdiagram.com/peugeot/fuses-and-relay-peugeot-206.html

8/11

19/04/2018

Fuse box Peugeot 206

F6

(5A) Engine management, immobilizer

F7

(15A) Convertible top

F8

(10A) Alarm system LED, digital multifunction display, hazard warning lamps, instrument , interior lamps

F9

(5A) Multifunction control module

F10

–

F11

(10A) LH stop lamp, centers top lamp

F12

(10A) RH stop lamp

F13

–

F14

(30A) Rear electric windows

F15

(20A) Load area lamps, trailer socket

F16

–

F17

–

(10A) Audio unit illumination lamp, cigarette lighter lamp, clock, instrument illumination, digital F18

multifunction display, licence plate lamps, switch illumination, transmission selector lamps, heater control lamp/s

F19

(5A) Rear fog lamps

F20

–

F21

–

F22

(10A) Alternator warning lamp, clock, digital multifunction display, glovebox lamp, instrument , interior lamps, navigation system, rain sensor, rear electric windows

F23

(20A) Cigarette lighter

F24

(15A/20A) Audio system

F25

(20A) Rear screen wash/wipe system, windscreen wash/wipe system

F26

–

F27

(5A) Multifunction control module

F28

–

http://fusesdiagram.com/peugeot/fuses-and-relay-peugeot-206.html

9/11

19/04/2018

Fuse box Peugeot 206

F29

(10A) LH headlamp-high beam

F30

(10A) RH headlamp-high beam, headlamp high beam warning lamp

F31

(10A) LH headlamp-low beam

F32

(10A) RH headlamp – low beam, headlamp low beam 'on' warning lamp

F33

(5A) Headlamp washers

F34

(10A) LH side lamp, LH tail lamp

F35

(10A) RH side lamp, RH tail lamp

F36

–

F37

(5A) Engine coolant blower motor control module- HFY/HFZ/KFX/NFZ/WJZ

F38

(5A) AC refrigerant triple pressure switch, engine coolant blower motor relay2

F39

–

F40

(20A) Heater/air conditioning (AC)

F41

(5A) Spare

F42

(10A)Spare

F43

(30A)Spare

F44

(20A)Spare

F45

(15A)Spare

BATERIA SELADA 12V…

CONVERSOR PARA MOTOR…

MOTOR PARA AVIÁRIO…

R$53.90

R$559.99

R$427.95

Comprar

Comprar

Comprar

http://fusesdiagram.com/peugeot/fuses-and-relay-peugeot-206.html

10/11

19/04/2018

Fuse box Peugeot 206

Posted in Peugeot Tagged Fuse box diagram Peugeot
